The C18 diesel generator sets have been developed for your mission critical, standby and prime applications. Producing reliable power from 550 to 715 kVA at 50 Hz, meeting ISO 8528-5 transient response requirements and built to accept 100 % rated load in one step. Our C18 generator sets range from Low Fuel Consumption, Low Emissions and China Nonroad III Emission Standards Emissions / Fuel Strategy.
Diesel Generator Sets
Bore
145MM
Stroke
183MM
Displacement
18.13L
Overview
Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.
Electric Power Ratings GuideC18, DE605E0, 50 Hz, 605 kVA Standby, 550 kVA Prime, Non-Certified Emissions Spec SheetC18, DE600C3, 50 Hz, 600 kVA Prime, China Non-Road-III Spec SheetDE715E0, 50 Hz, 715 kVA Standby, 650 kVA Prime, Non-Certified Emissions Spec SheetC18, DE660E0, 50 Hz, 660 kVA Standby, 600 kVA Prime, Non-Certified Emissions Spec Sheet
Specifications
Engine Specifications
- Bore145mm
- Stroke183mm
- Displacement18.13l
Attachments
COMPATIBLE WITH
C18 Sound Attenuated Enclosure 50 and 60 Hz
These sound attenuated, factory installed enclosures incorporate internally mounted super critical level silencers, designed for safety and aesthetic value on integral fuel tank base or optional dual wall integral fuel tank base for total fluid containment. These enclosures are of extremely rugged construction to withstand exposure to the elements and provide weather protection.
C13, C15, C18 SA enclosure. 350-600 kW 60 Hz
These sound attenuated, factory installed enclosures incorporate internally mounted super critical level silencers, designed for safety and aesthetic value on integral fuel tank base or optional dual wall integral fuel tank base for total fluid containment. These enclosures are of extremely rugged construction to withstand exposure to the elements and provide weather protection.
C13, C15, C18 WP Enclosure. 350-600 kW 60 Hz
Extremely durable and robust, the enclosures are designed to resist corrosion and handling damage with the ability to withstand rough handling common on many construction sites. Developed through continuing research and development by our specialist engineers, the enclosures are fully weatherproof and incorporate internally mounted exhaust silencers.
C18 High Ambient Acoustic Enclosure
These high ambient, factory installed enclosures incorporate internally mounted residential level silencers, designed for safety and aesthetic value on integral fuel tank base or optional dual wall integral fuel tank base for total fluid containment. These enclosures are of extremely rugged construction to withstand exposure to the elements and provide weather protection.
EMCP 4.3 Control Panel
The Cat® EMCP 4 Control Panel provides all of the controls and system indicators in one easy to access interface.

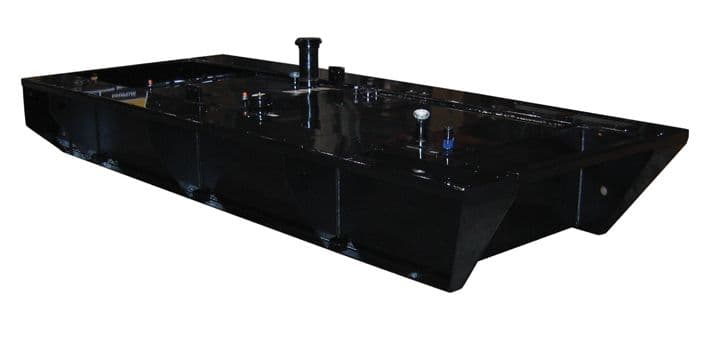

C18 Integral Fuel Tank Base
This is a tank that is embedded within the baseframe.
