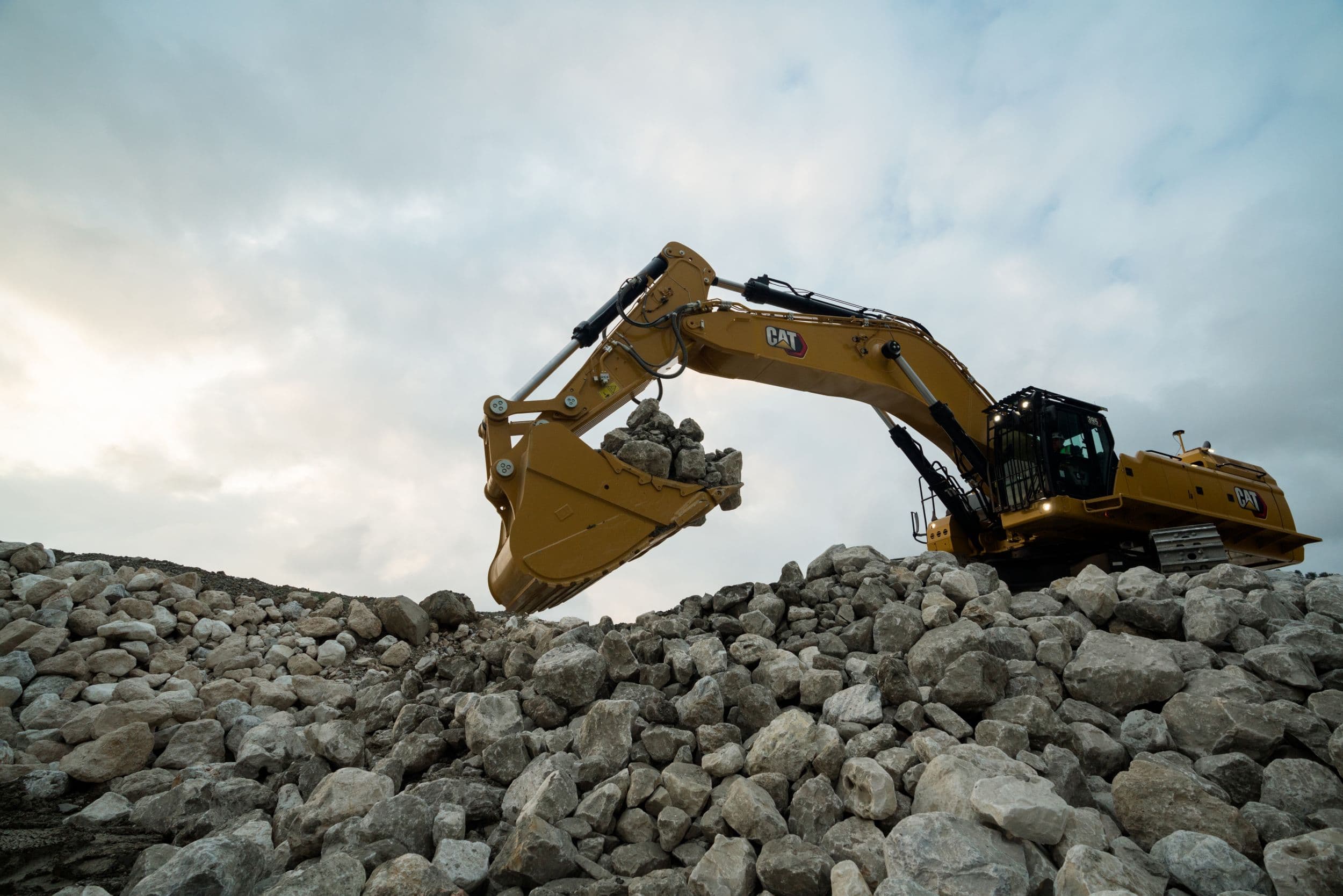

The Cat® 395 Excavator is a 95-tonne large excavator that brings faster cycle times, greater groundbreaking power and longer service intervals to your jobsite. The 395 excavator has 10% more swing torque and stick force, two times more structural durability and 20% lower maintenance costs than the 395F.
Net Power - ISO 9249
404kW
Net Power - ISO 9249 (DIN)
550hp (metric)
Engine Power - ISO 14396
405kW
Customer Support
We are available to assist you for any enquiries.
Learn MoreGenuine Cat® Parts
More than 1.4 million genuine Cat® parts available online on Parts.Cat.Com
Purchase OnlineTractors Malaysia Advantage
We design services that meet your needs beyond equipment.
Learn MoreOverview

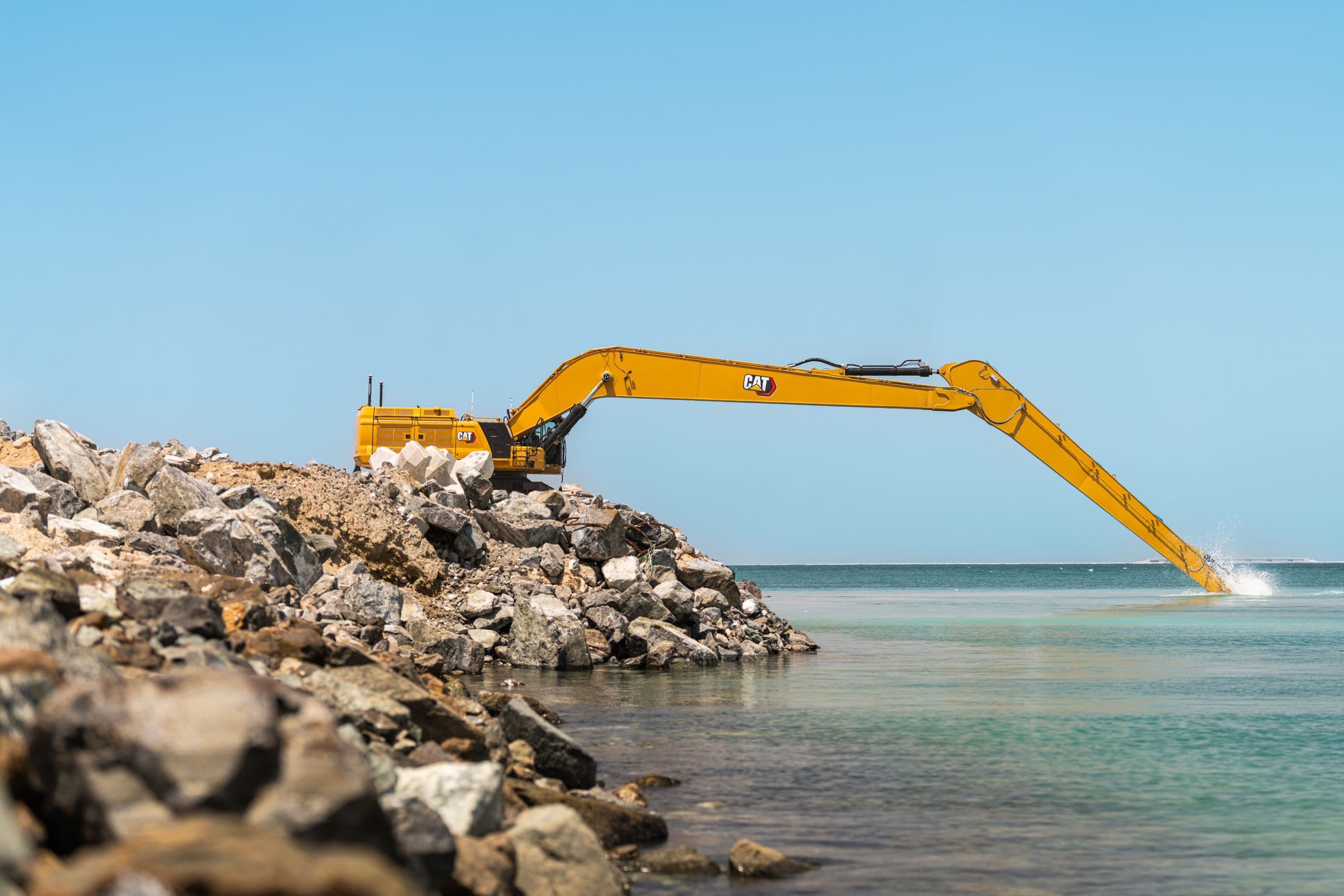

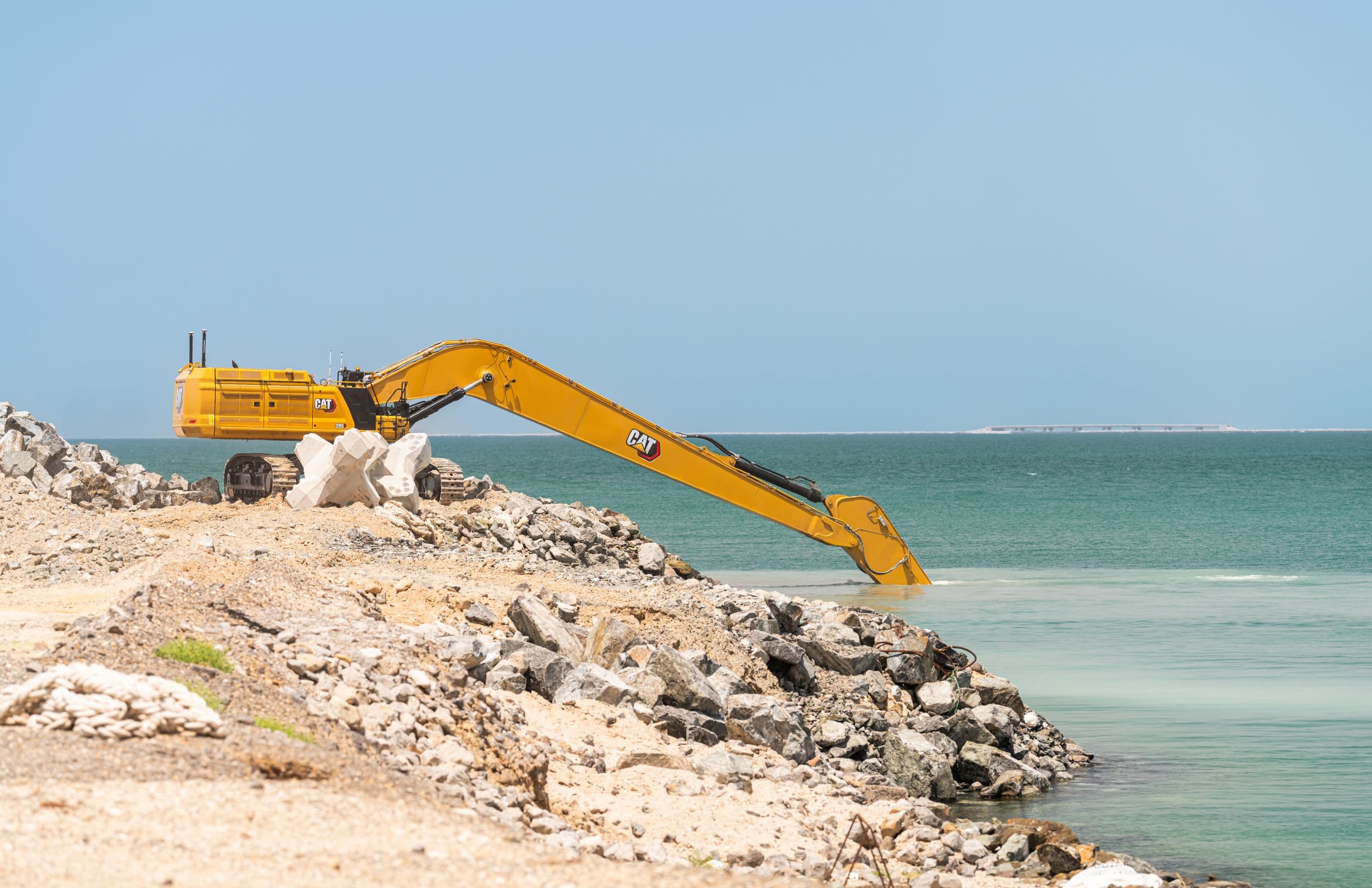

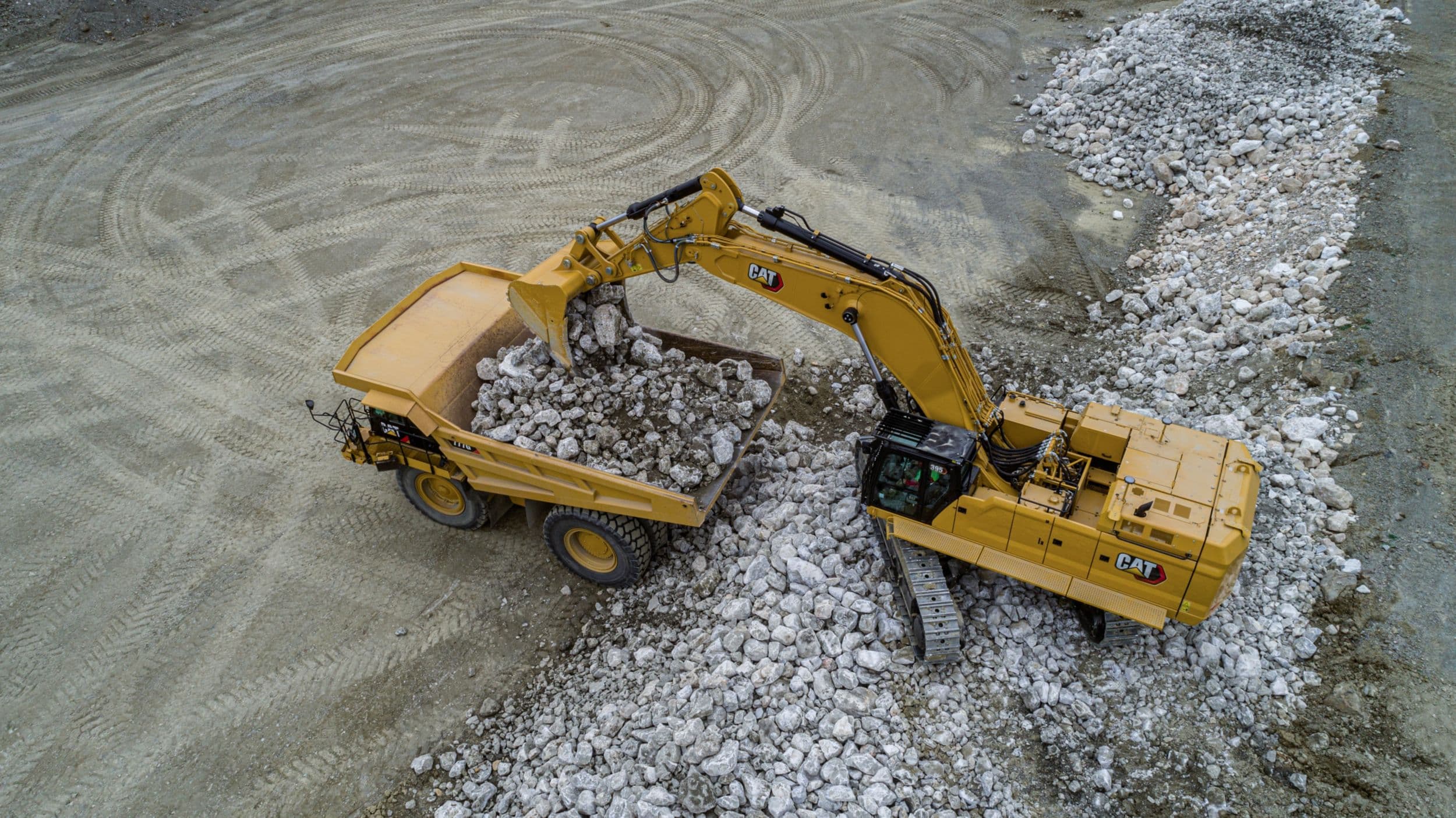

The Cat® 395 gets every job done every time. A 10% higher digging force eases bucket penetration to reduce digging cycle time in the most demanding applications. With up to a 15% higher payload and the ability to carry the SD6.5m3 bucket, this mass excavator can load a 70-ton off-road truck in 5-6 passes. For deep trenching work, the 395 digs down deep with maximum digging depths from 7190mm (23’7” ft) up to 11 710 (38’5” ft). The 395 is built for extreme durability with 2x reinforced booms, sticks, upper and lower frames. Reduced hydraulic oil capacity, improved filters with longer service intervals, and an integrated auto-lube-ready system save you up to 20% in maintenance costs. Equipped with the latest technology and data, the 395 helps you make informed and smart decisions to improve efficiency, increase productivity, and enhance safety.
Specifications
Engine
- Net Power - ISO 9249404kW
- Net Power - ISO 9249 (DIN)550hp (metric)
- Engine Power - ISO 14396405kW
- Engine Power - ISO 14396 (DIN)551hp (metric)
- Bore145mm
- Stroke183mm
- Displacement18.1l
Have a question?
We are available to assist you for any enquiries.
Ask UsAttachments
COMPATIBLE WITH
CW-70

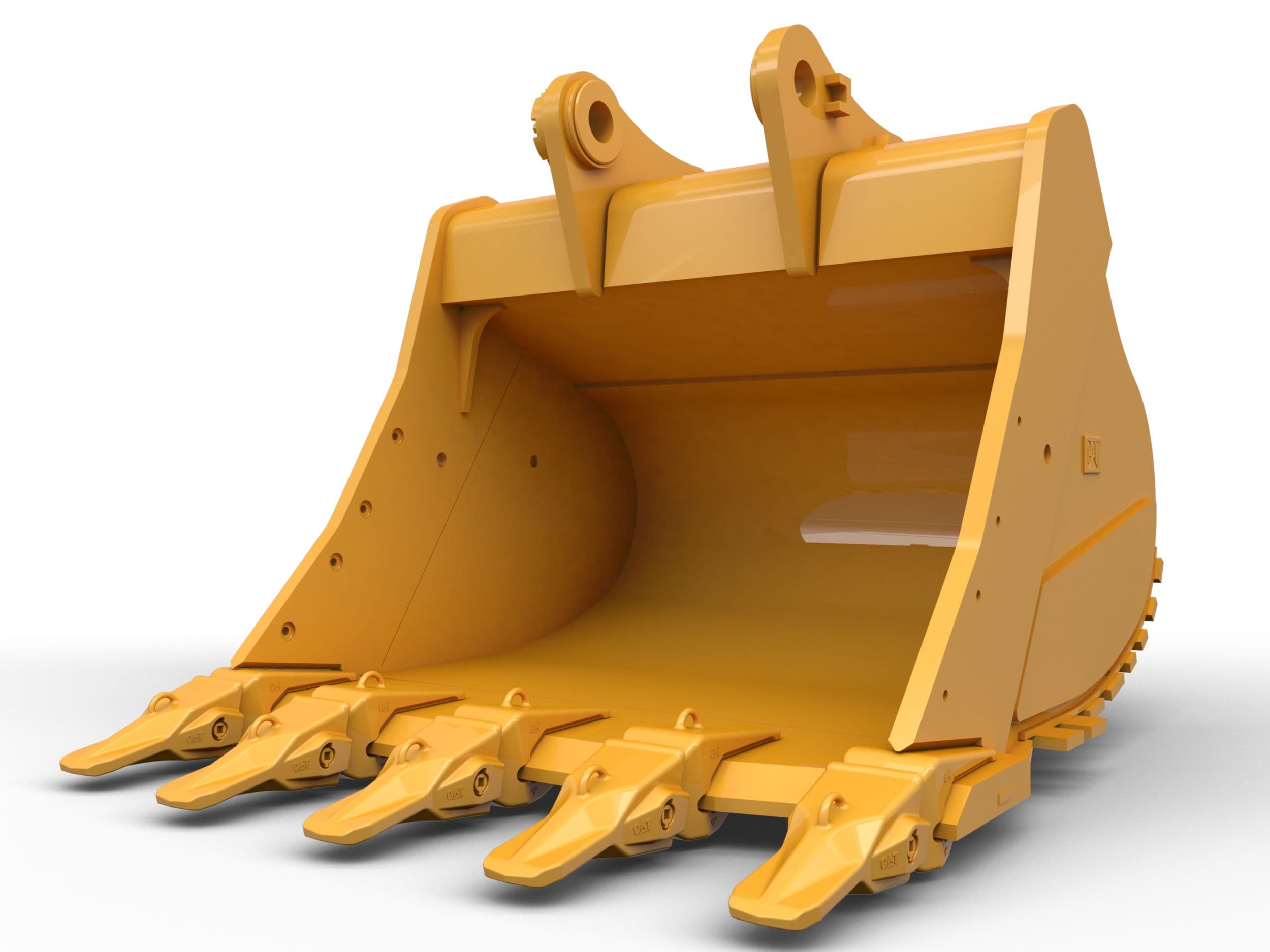

View ModelsGeneral Duty Bucket 2800 mm (110 in): 588-7528

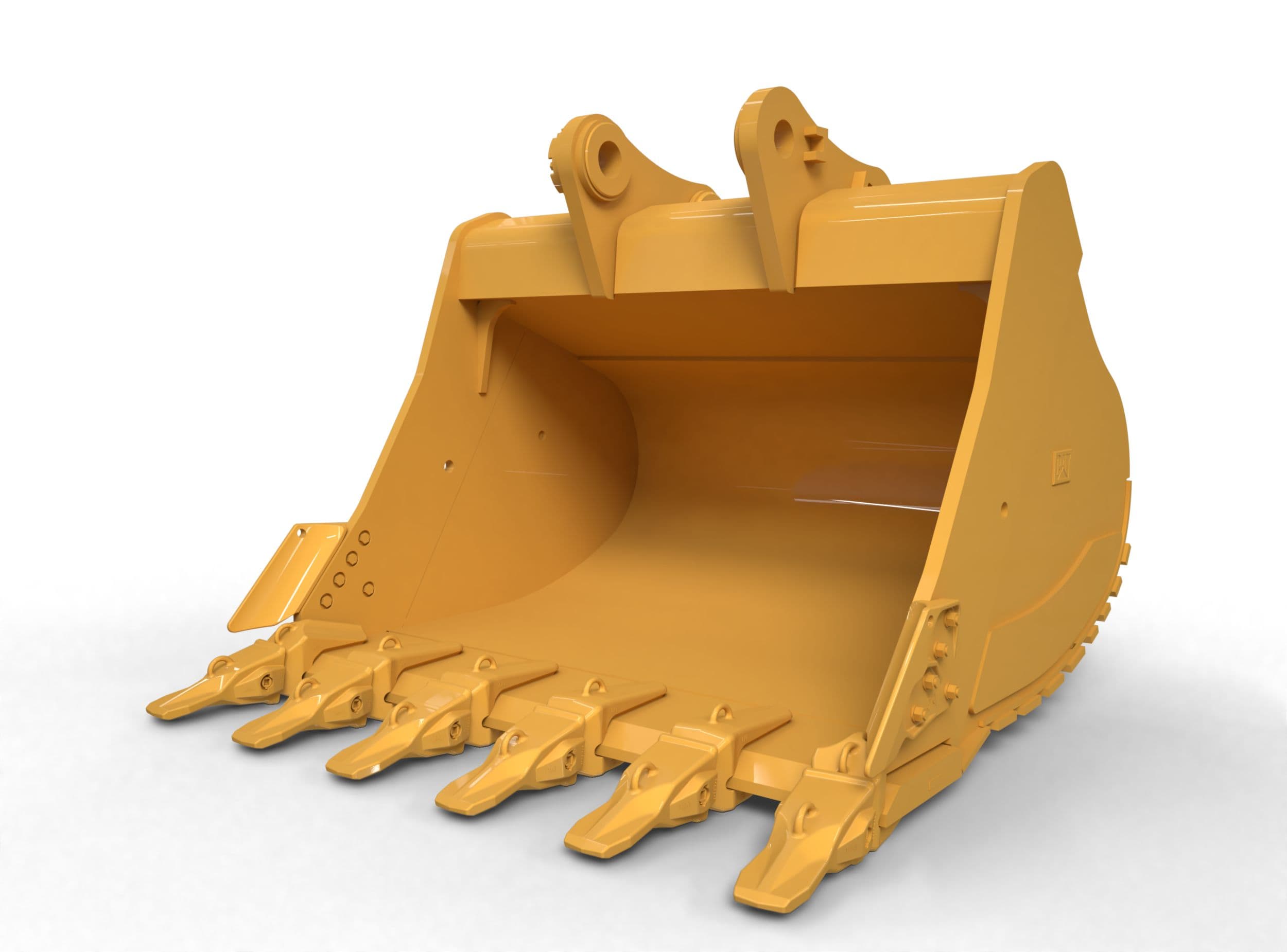

View ModelsGeneral Duty Bucket 2600 mm (102 in): 528-8163
Cat®buckets are more than just an add-on, they are an extension of your Cat machines. Each one is perfectly balanced to our excavators so you can take on heaping loads without compromising fuel efficiency or machine health. We built them to fill faster, retain your load, and fit your task.
View Models
